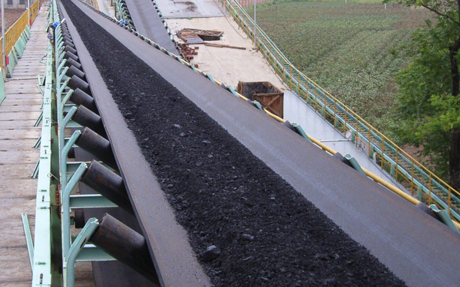

煤矿用织物叠层阻燃输送带具有使用高效、维护方便、安全可靠等特点。还具有伸长小、耐曲挠、抗冲击、尺寸稳定性和耐水性能好等特点。是煤矿井下使用的节能、环保型换代产品。用于煤矿井下和各种需要阻燃抗静电运输场所，更适用中长距离和高载荷、高速度、冲击大、磨损较重的条件下输送物料。
|
技术参数 |
680SD |
800SD |
1000SD |
1250SD |
1400SD |
1600SD |
1800SD |
2000SD |
2240SD |
2500SD |
|
整体纵向拉伸强度N/mm，≥ |
680 |
800 |
1000 |
1250 |
1400 |
1600 |
1800 |
2000 |
2240 |
2500 |
|
整体横向拉伸强度N/mm，≥ |
260 |
270 |
300 |
350 |
350 |
350 |
350 |
350 |
350 |
350 |
|
芯体结构 |
EPR175×4 |
EPR200×4 |
EPR250×4 |
EPR315×4 |
EPR350×4 |
EPR400×4 |
EPR450×4 |
EPR500×4 |
EPR450×5 |
EPR500×5 |
|
芯体厚 |
4.5 |
5.6 |
6.7 |
7.8 |
8.5 |
10 |
10.6 |
12.1 |
13.6 |
15.5 |
|
总厚度 |
8.5 |
9.6 |
11.7 |
12.8 |
13.5 |
16.0 |
16.6 |
21.1 |
22.6 |
24.5 |
|
上/下覆盖胶厚度 |
2/2 |
2/2 |
3/2 |
3/2 |
3/2 |
4/2 |
4/2 |
6/3 |
6/3 |
6/3 |
|
带宽 |
输送带质量kg/m |
|||||||||
|
500mm |
5.5 |
5.8 |
7.0 |
7.7 |
8.0 |
9.5 |
9.8 |
12.4 |
13.5 |
14.3 |
|
650mm |
7.2 |
7.5 |
9.1 |
10 |
10.5 |
12.2 |
12.7 |
16 |
17.6 |
18.5 |
|
800mm |
8.8 |
9.2 |
11.2 |
12.2 |
13.0 |
15.0 |
15.6 |
19.8 |
21.6 |
22.8 |
|
1000mm |
11 |
11.5 |
14 |
15.3 |
16.2 |
18.8 |
19.5 |
24.7 |
27 |
28.5 |
|
1200mm |
13.2 |
13.8 |
16.8 |
18.4 |
19.5 |
22.6 |
23.4 |
29.6 |
32.4 |
34.2 |
|
1400mm |
15.4 |
16 |
19.6 |
21.4 |
22.7 |
26.3 |
27.3 |
34.6 |
37.8 |
40 |
|
1600mm |
17.6 |
18.5 |
22.4 |
24.5 |
26.0 |
30.1 |
31.2 |
39.5 |
43.2 |
45.6 |
|
1800mm |
19.8 |
20.7 |
25.2 |
27.5 |
29.2 |
33.8 |
35.1 |
44.5 |
48.6 |
51.3 |
|
2000mm |
22 |
23 |
28 |
30.6 |
32.4 |
37.6 |
39 |
49.5 |
54 |
57 |
|
2200mm |
24.2 |
25.3 |
30.8 |
33.7 |
35.6 |
41.4 |
43 |
54.4 |
59.4 |
62.7 |
|
2400mm |
26.4 |
27.6 |
33.6 |
36.7 |
39 |
45.1 |
46.8 |
59.3 |
64.8 |
68.4 |
