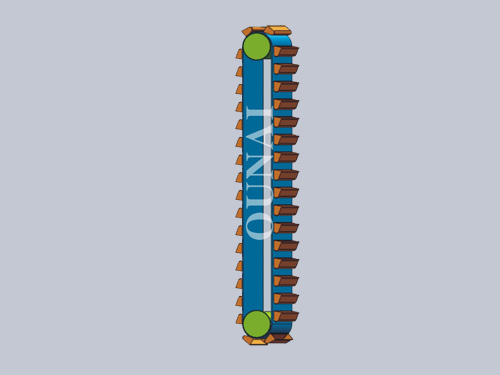

Elevator Conveyor Belt

Bucket elevator belts are composed of belt bodies and elevator buckets. The carcass materials consist of dipped polyester-cotton canvas (EP canvas, steel cord) together with transverse rigid reinforcing layers. The transverse rigid reinforcing layers embedded inside the belt body allow vertical elevating conveyance.
Elevator conveyor belts feature low elongation, large conveying capacity, stable operation and easy maintenance, and they perform well when transporting lump materials. They are mainly designed for vertical material conveying and widely applied in building materials, mining, chemical industry, light industry, machinery, electric power, grain and other industrial sectors.

Main Features

Belt Type	Belt Category	Carcass Material Model	Cover Rubber Thickness (mm)		Production Width Range (mm)
Belt Type	Belt Category	Carcass Material Model	Top Cover	Bottom Cover	Production Width Range (mm)
Standard Type	Nylon (NN) Conveyor Belt	NN100—NN400	1.5	1.5	300—1600
	Polyester (EP) Conveyor Belt	EP100—EP400	1.5	1.5	300—1600
	Cotton Canvas (CC) Conveyor Belt	CC—56	3.0	3.0	300—1600
Reinforced Type (Tear Resistant)	Nylon (NN) Conveyor Belt	NN100—NN400	3.0	3.0	300—1600
	Polyester (EP) Conveyor Belt	EP100—EP400	4.5	4.5
	Cotton Canvas (CC) Conveyor Belt	CC—56	6.0	6.0
	Steel Cord Conveyor Belt	ST630—ST5400	6.0	6.0
