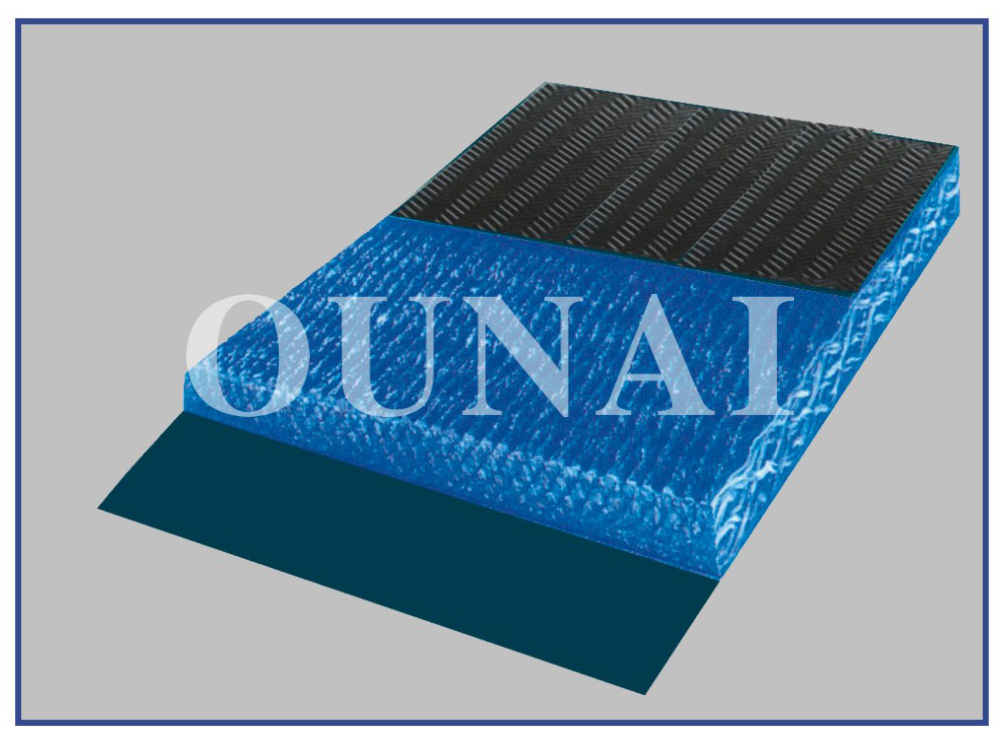

PVC Solid Woven Flame-Retardant Conveyor Belt for Mining

(1) Mechanical Properties: It features outstanding mechanical properties, delivering maximum service life and cost-effective installation & operation for users.
Longest Service Life: The service life of the belt body depends on the following factors: dense carcass woven with warp and weft filaments plus covering cotton yarn; special-formula PVC dipping material creating ultra-high adhesion strength between carcass and cover rubber; specially formulated cover rubber. These features endow the belt body with excellent impact resistance, tear resistance and abrasion resistance.
(2) Splicing Performance: Based on belt tensile strength and carcass structure, mechanical fastener splicing can retain 50%-90% of the belt’s rated tensile strength; vulcanized splicing can retain 60%-90% of the belt’s rated tensile strength. A variety of splicing methods are available to meet diverse customer demands and ensure safe, efficient operation of the conveying system.

Main Features

Product Specifications	Belt Body				Tear Strength(N) ≥	Adhesion Strength Between Cover Layer and Carcass		Recommended Minimum Driving Pulley Diameter(mm)
	Tensile Strength(N/mm)		Elongation at Break(%)			Adhesion Strength Between Cover Layer and Carcass
	Longitudinal ≥	Transverse ≥	Longitudinal ≥	Transverse ≥		Average Value ≥	Minimum Value ≥
680S	680	265	15	18	1100	4.00	3.25	450
800S	800	280	15	18	1200			550
1000S	1000	300	15	18	1200			650
1250S	1250	350	15	18	1600			750
1400S	1400	350	15	18	1600			800
1600S	1600	400	15	18	—			850
1800S	1800	400	15	18	—			900
2000S	2000	400	15	18	—			1000
2240S	2240	450	15
